उत्पाद विवरण:
|
| इनलेट तार की संख्या: | 40 पीसीएस | मशीन का रंग: | आसमानी नीला या सेब हरा |
|---|---|---|---|
| तार के लिए फिट: | 0.08-0.25 मिमी या 0.15-0.64 | बोबिन का भुगतान करें: | व्यास 300मिमी |
| भुगतान विधि: | ब्रश का भुगतान | अधिकतम गति: | 300 मी / मिनट |
| तापानुशीतन विधि: | ट्यूब एनीलिंग | ||
| प्रमुखता देना: | copper wire annealing machine,cable coiling machine |
||

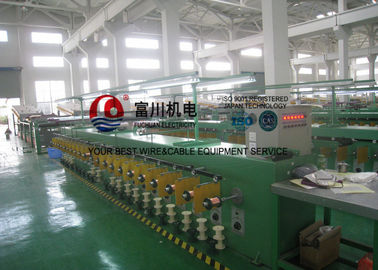

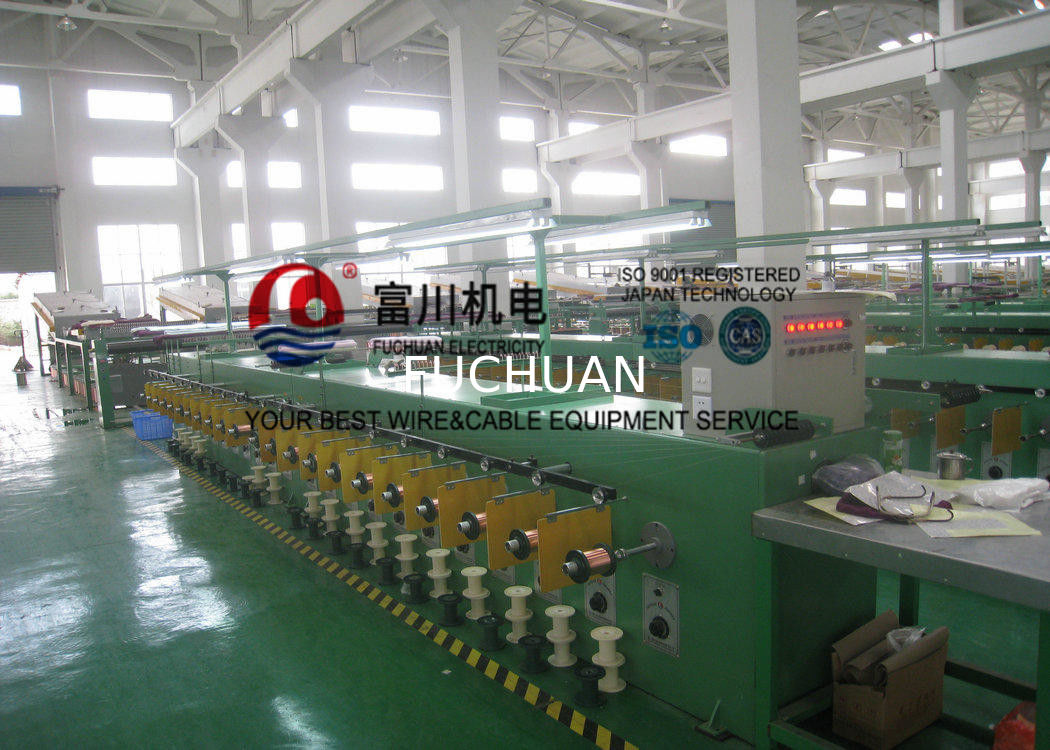

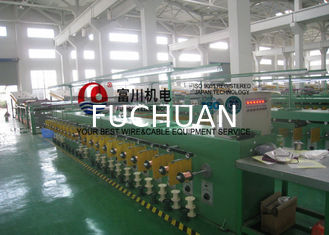

Fuchuan Ultra fine Copper Tinned Wire Tube Annealing Machine , Energy Saving
Quick detail:
FC-T40-4 normal wire high speed annealing machine
Characteristics:
1. Easy to operate,
2. Good annealing heat preservation,
3. Save electricity,
4. Achieve industry-leading level.
Specification:
|
Equipment models |
FC-T40-4 |
|
Twisting usage |
Mainly apply for the annealing of ultra-fine round copper wire and alloy wire. |
|
Single wire dia(mm) |
φ0.08-φ0.25 or φ0.15-φ0.64mm |
|
Max numbers of inlet wire |
40pcs |
|
Linear speed |
Max:300m/min |
|
Pay off method |
Brush pay off |
|
Pay off bobbin model |
φ300bobbin |
|
Annealing furnace length |
3.5m or 6m |
|
Annealing method |
Tube annealing |
|
Annealing protection method |
Water seal protection |
|
Tinned method |
Hot dip |
|
Capstan control method |
Inverter+ motor control or adopt stepless speed regulation motor |
|
Equipment total power |
68kw |
|
Take up control |
Take up is voltage regulator control the moment motor |
|
Take up bobbin size |
5inch,8inch bobbin or 5inch,8inch,10inch bobbin |
|
Traverse control method |
Stepless speed regulation motor+ turbine gear box control toothrow traverse |
|
Installation size |
24000L*2200W*2100H |
