Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

बड़ी छवि : Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन कुशान
ब्रांड नाम:	FUCHUAN
प्रमाणन:	CE
मॉडल संख्या:	एफसी-653डी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	negotiable
पैकेजिंग विवरण:	बस पैक किया गया
प्रसव के समय:	45 दिन
भुगतान शर्तें:	टी/टी, एल/सी
आपूर्ति की क्षमता:	200set/महीना

संपर्क करें

Fuchuan FC-450b New High-Speed CNC Stranding Machine with 4kw Motor Automatic Winding & Wire Laying 2000kg Load Capacity

वर्णन

स्पूल विशिष्टताएँ:	φ500मिमी-φ630	वोल्टेज:	380V
तांबा तार:	0.12मिमी-0.68मिमी	आवाज़ का उतार-चढ़ाव:	निर्णययोग्य हो सकता है
अधिकतम घूर्णन गति:	3000(6000tpm)	रंग:	आसमानी नीला/सेब हरा
खत्म करना:	टेम्परिंग और पीस	ऑपरेशन मोड:	टच स्क्रीन ऑपरेशन
अन्य नाम:	तांबे की पंचिंग मशीन	बोबिन उठाओ:	व्यास 300 मिमी/400 मिमी/450 मिमी
प्रमुखता देना:	high-speed CNC stranding machine , automatic winding copper wire machine , 2000kg load capacity wire laying machine

Basic Info.

Model NO.

FC-654D

Condition

New

Certification

FDA, RoHS, ISO, CE

Warranty

24 Months

Automatic Grade

Automatic

Mould Life

<300,000 Shots

Type

High-speed Stranding Machine

Bow

Carbon Fiber/Stainless Steel

Color

Customized

Etd

30days

Max Speed

2600rpm

Pay-off Speed

200m/Min

Power

15kw

Transport Package

Wooden Box

Specification

4500kg

Trademark

FCJD

Origin

Kunshan, China

HS Code

8479400000

Production Capacity

200 Sets Per Month

Product Description

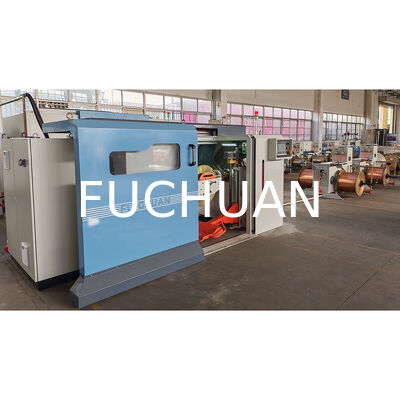

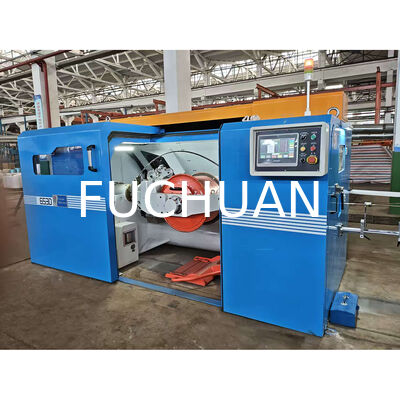

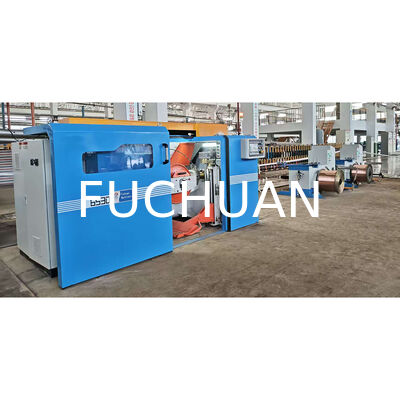

high-performance bunching machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects.

Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation.

Suitable for stranding conductors such as bare copper wire, tinned wire and aluminum alloy wire, which are used in

automotive wire, electronic wire and power cord.

Specification

Features

1.IoT access: Ethernet ports are reserved for loT access, which can display rotation speed, stranding specifications, wire speed, output, equipement maintenance, etc.

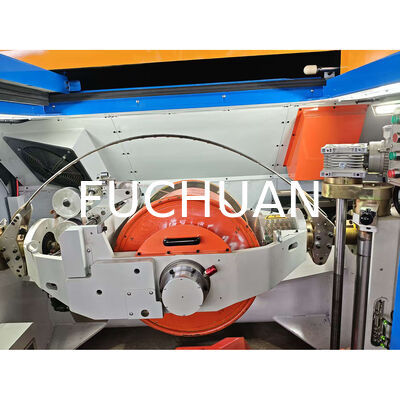

2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.

3. Electronic control pitch: can set the pitch value on the PLC panel.

4. Take-up tension control: AC frequency conversion motor drives take-up.

Technical Specifications

(Custom configurations available upon request.)

Model	FC-652D	FC-653D	FC-654D	FC-802C	FC-803C
Wire dia. (mm)	Φ0.12-0.45	Φ0.12-0.68	Φ0.12-0.68	Φ0.15-1.35	Φ0.15-1.35
Cross section (mm2 )	0.35-4.0	0.35-6.0	0.35-6.0	1.0-16.0	1.0-16.0
Pitch (mm)	10-100	10-100	6.5-75	20-160	20-160
Pitch adjusting method	PLC control	PLC control	Manual	PLC control	PLC control
Spool size(mm)	Φ500-630	Φ500-630	Φ500-630	Φ630-800	Φ630-800
Max speed (rpm)	2600	2600	2600	1800	1800
Total power	15KW	15KW	15KW	18.5KW	18.5KW
Stranding direction	S/Z	S/Z	S/Z	S/Z	S/Z
Overall Size(mm)	365020002200			460021002200

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering

team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20

years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by

R&D innovation and strict quality control.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Signle twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
